Description
The most advanced multi-sensory sound, light, color, music and tactile vibration analysis and feedback system ever developed.
Features:
Biometric Analysis of Breath and Voice:
- Six channels of input via mic, instrument or other sources.
- True Fundamental Frequency detection of lowest note with a full set of overtone harmonics.
- First 11 overtones of the Fundamental – Personalized
Vibratory Signature unique to the user.
- Graphic Digital Waveform Display.
- Piano notation of voiced or whispered music note.
- Light frequency and correlated color of the music note – to screen or projector to wall, ceiling or body.
- Histogram of accumulated fundamental frequencies as music notes with polar distribution and frequency versus amplitude graphic.
- Voice Tuning for Flat or Sharp Responses.
- Closest Music Note, Tuning and Manuscript Paper Notation.
- Freeze/Unfreeze and Copy to Sensorium Feedback System
- Choice of Minimum, Maximum, Average, of Fundamental or Compliment.
When the analysis information is gathered it can be transferred to the Sensorium IV Sensory Interface for synchronized and programmed feedback to the user.
Sensorium™ IV Sensory Interface Feedback System
- Multi-Sensory, synchronized and programmable feedback of voice, frequency or music using Light, Color, Sound, Tactile Vibration and Music.
- Programmable Sequencer showing sessions, segments, duration and ramping times, current and next segment, load and save session files.

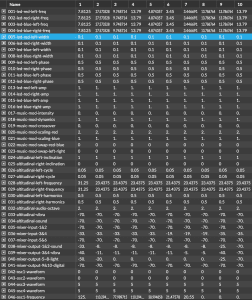

- A Spreadsheet shows and allows programming of 147 user definable session parameters and session segments. User can determine all 147 parameters of each segment, program the time in minutes or seconds and add as many segments of a session as the computer can store.

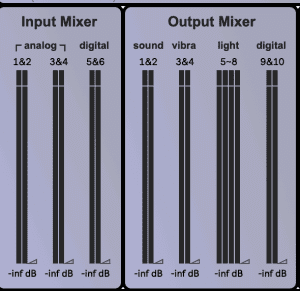

- Built-In Six Channel Input and 8 Channel Output Sliders.

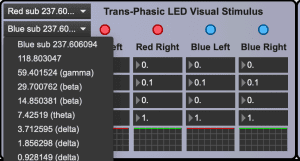

- Four Channel (Blue and Red) Light Pulse Generator with Dividers that allow the voiced fundamental frequency to be reduced to brainwave states as binaural beats.

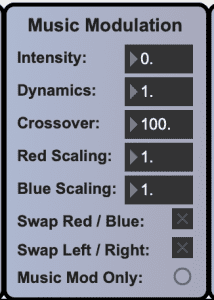

- 7th Generation Light Waveform Modulation of Music allows the music to modulate the brightness of the lights without changing the pulse frequency.

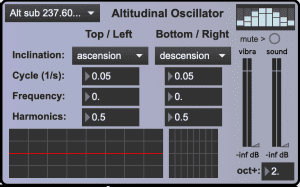

- Two Channel Altitudinal Oscillators allow users to incline by ascension or descension with a Shepherd wave when they are anxious, over-amped, tired or bored. Great for creating oscillating binaural beats.
- Four Channel Function Generators provide sound and tactile vibrations to headphones, speakers and sound tables, chairs or pads. All four channels can be subdivided into brainwave frequencies based on the voiced fundamental frequency with full control of frequency, LFO modulation, phase, panning and six waveforms – sine, sawtooth, triangle, major chord, minor chord, pink or white noise.

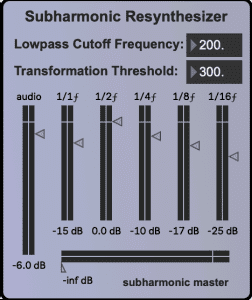

- Subharmonic Re-synthesizer can reduce sounds and music without any appreciable tactile vibration by up to 5 octaves so that they can be felt as well as heard and seen.
- Twelve Tone-Banks allow manual or transfer of information from the Fundamentalizer for personalized and unique combinations of frequency, phase, amplitudes and LFO modulation of voice or frequency programs. This information can be transferred to the Sensorium™ IV spreadsheet to compose personalized pre-programmed sessions for users that can be saved and reused later.

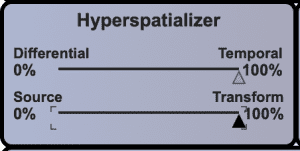

- Award-winning HyperSpatializer™ Audio Dimensionalizer supersedes artificial stereo and creates infinite phase for a perfect listening environment.
- Chromaphase Color Generator that controls hue, lightness, saturation and RGB settings for specific frequencies of sound. This can project to full screen, or with an optional projector be projected at walls, ceiling or a person’s body.
